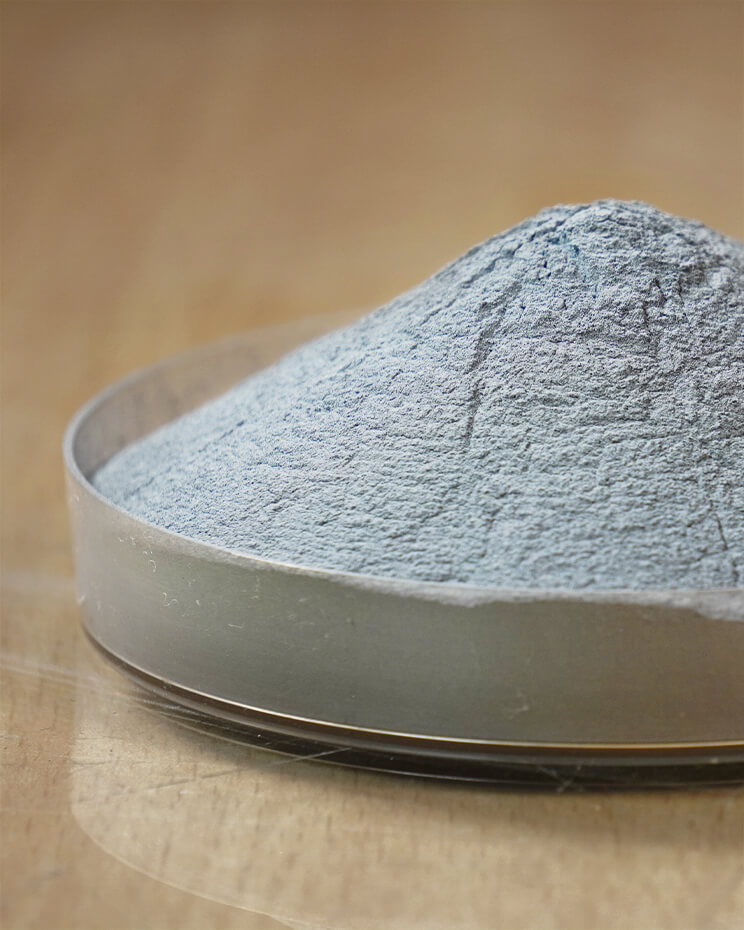

M 3/2

Specification No.

IP 21104

Chemistry

W: 5.0 – 6.75%
Cr: 3.75- 4.5%
V: 2.75 – 3.75%
Mo: 4.75 – 6.5%
C: 1.1 – 1.3%
Fe: Remainder

Size

-100# (150 microns)

Sieve analysis

>150 μm : 10% max
<45 μm : 30% min.

Shape

Irregular

Apparent density

2.2 – 2.8 g/cc

download enquiry now

Typical Applications

Diamond tools
